- Guaranteed Secure Payments on Every Order
- Refund if your item is not delivered or as described
- Buyer Protection after order confirmation
- Place of Origin: China
- Brand Name: TNE
- Model Number: TN-010
Packaging & Delivery
Selling Units: Single item
Single package size: 60X70X120 cm
Single gross weight: 80.0 KG
Package Type: carton box with bubble with wooden pallet packing
Lead Time:
Quantity(Unit) | 1 - 5 | >5 |
Est. Time(day) | 50 | To be negotiated |

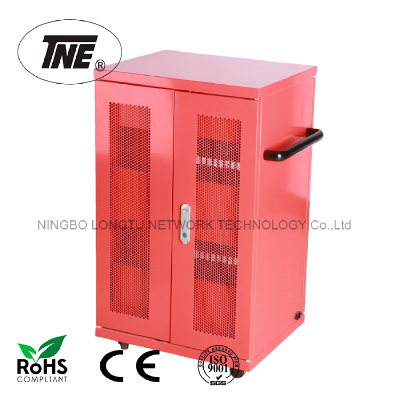

Professional 40 port lapto charging trolley SPCC charging cabinet for mobile devices
Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41491;PART1, DIN41494;PART7,GB/T3047.2-92
and ETSI standard
Features:
This Ipad charging cabinet is customized design to secure, protect and charge the
40×10.1" and 1×15.6" Laptop.
(we design for customized requirements)
Main feature
19" installation rail create capacity for you :
• 20-unit capacity with 25 mm wide slots and sliding drawer for operation-ideal for tablets, Chromebooks and Ultrabooks, total 2 levels
• with 40pcs USB Ports
• 1xPDU 6ways, EU/USA/UK/IEC type.,etc are all available
• 1×sliding shelf for laptop
Detail size will be adjusted when drawing confirming.
• 80mm gap between every level for airflow and cooling-great for charging
Detail size will be adjusted when drawing confirming.
• 19" installation shelf allow you to adjust the shelf location accordingly to mix and match devices: removable if not need.
• Cable entrance punched in back wall panel,allow for power supply and good for cable management.
Efficiency
2" swiveling wheels included for moving
Rear wall mounting panel for storage
Security
Tough, secure storage. Rugged steel construction withstands classroom abuse
Durable SPCC steel doors include handle with unique key lock.
Cabinet is made up to 1.2 mm,with 1.5mm mounting rails.
Safety
Well-designed ventilation and continuous operating fans keep devices cool
For user and equipment safety, the entire cabinet is to be tested and certified to CE,RoHS,ETSI standard
Environment
Cooling/Ventilation: 2 AC continuous operation fans keep equipment cool
Country-specific power cord = 1.5m long
Power System: input/output = 220-250V~, 10A, 50/60 Hz
Temperature Range: operating 0° to 30°C (32° to 86°F); storage -40°C to 60°C (-40° to 140°F)
IP degree : IP-20
Parameter
Warranty: Ten (10) years mechanical/workmanship; two (2) years electrical components; one (1) year cables
Metal thickness | 0.8 to 1.5mm |
Type of Metal | SPCC Cold Rolled Steel |
Paint type and thickness | Thermosetting plastic powder, 0.17 to 0.3mm |
Castor diameter | 3 inches Castor total height 105mm, wheel diameter 105mm. Mounting holes distance: 73 * 44.5mm Material: steel and rubber The material strength of steel and rubber is 235MPa. The castor heavy duty is 600-800KG |
Total dimension of the cabinet (Without castors) Total dimension of the cabinet (With castors) | 700(W)X600(D)X1021(H) 700(W)X600(D)X1126(H) |
Shelf dimension | 603(W)X350(D)X26.5(H) |
5 ways PDU | 1.5U 5ways South African type PDU, with 1P circuit breaker, power cord 3G1.5mm2 520mm, IEC C20 plug.(L×W×H=429.6×62×45mm) |
15 ways PDU | 1.5U 15ways South African type PDU, with 1P circuit breaker, power cord 3G1.5mm2 470mm, IEC C20 plug.(L×W×H=981.1×62×45mm) |
External power supply | 1×C20 module |
Internal power supply | 3×C19 module |
Specification of mounting rails and vertical cable manager | NO Mounting Rails |
Specification of vertical cable manager | 94(W)X760(H)X66(D) |
Specification of handle lock | 142*32*42 |
Specification of small round lock | Φ22*20 |
Specification of side bars | Specification of side bars |
- Place of Origin: China
- Brand Name: TNE
- Model Number: TN-010
