Specifications

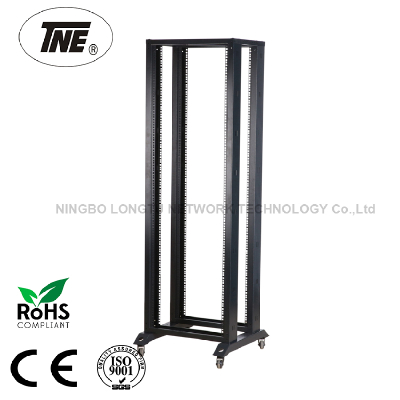

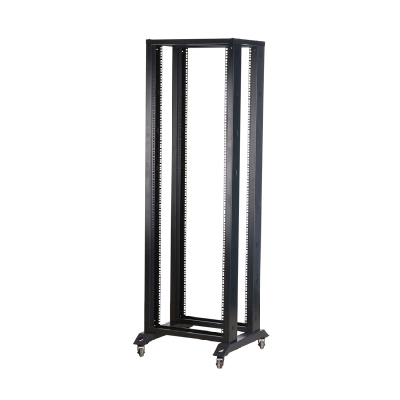

Cabinet rack server rack with wheels 22U 32U 42U 47U
Features:
Open Rack
Modular Design, Easy Assembled and Disassembled for Delivery, Low-Cost
Various Optional Accessories According to Requirements
(Cable Management Slot, Removable Working Panel, etc.)
Standard:
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI
Standard
Material:
High grade cold rolled steel.
Thickness:
Body: 1.50mm
Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.
Body Color:
RAL7035, RAL9004 etc.
Optional Accessory:
19 inch Rack Mountable drawer |
Sliding Shelf,fixed shelf |
Cable Management |
Cooling Fan,19inch rack mountable light |
Power Distribution Unit/ PDU |
Mainly Size:
MODEL NO. | Capacity | Width | Depth | Height |
TN-201-22 | 22U | 600 | 600 | 1119 |
TN-201-32 | 32U | 600 | 600 | 1562 |
TN-201-42 | 42U | 600 | 600 | 2007 |
TN-201-47 | 47U | 600 | 600 | 2230 |
