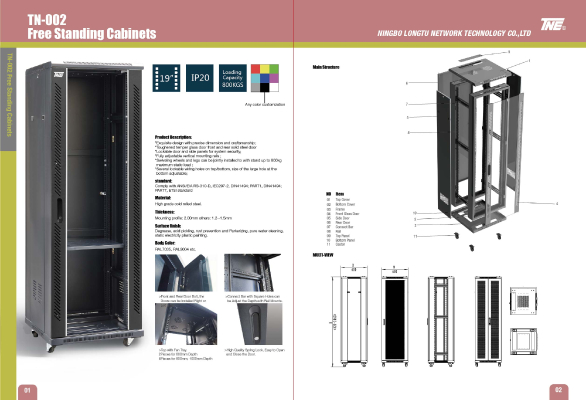

Specifications:

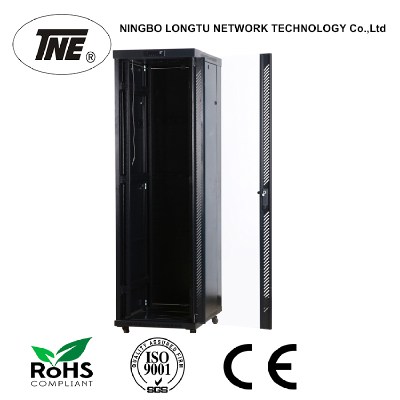

• Front Temper Glass Door with Swing Handle Lock (Thickness of Glass: 5mm)

• Rearl Flat Metal Door

 Inside with 4 galvanized Mounting Elements (Rails)

• Exquisite design with precise dimension and craftsmanship;

•  Lockable door and side panels for system security;

•  Fully adjustable vertical mounting rails;

• Swiveling wheels and legs can be jointly installed to withstand up to 800kg maximum static load;

• Several lockable wiring holes on top/bottom, size of the large hole at the bottom adjustable;

1.  Standard
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standard

2.  Material
High grade cold rolled steel.

3.  Thickness
Mounting profile: 2.00mm others: 1.2--1.5mm

4.  Loading Capacity
Static Loading: 800kgs

5.  Surface finish
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.

6.  Degree of Protection
IP20

7.  Body Color
RAL7035, RAL9004 etc.

Optional Accessory

1. Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet

2. 19'' keyboard frame (350mm, 550mm, 650mm, 730mm)

3. 1U, 2U support board

4. Vertical Cable manager

5. 19'' Power distribution unit(PDU)

6. 19'' Blanking plate 1U, 2U, 4U

7. Heavy duty castor, Heavy duty castor with braker

8. Optional lock for side panels

9. Earth kit

10. and so on..........

FAQ

1)    What is your Payment term?
---TNE accept T/T, L/C, Western Union.

2)    What is your Trade term?
---TNE do EXW, FOB, CNF, CIF terms.

3)    What is the Loading Port?
--- Ningbo or Shanghai port.

4)    What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.

5)    What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
