Product Details
- Place of Origin: China
- Brand Name: TNE
- Model Number: TN-008

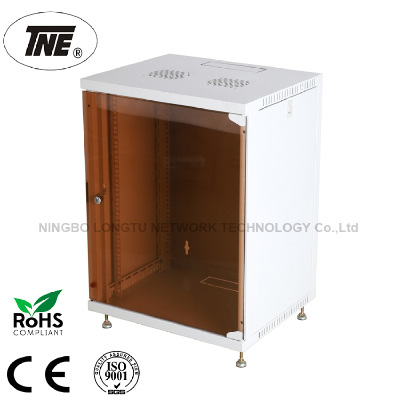

19'' Wall Mount Cabinet with 540mm Width
Features:
Specification:
> Welded Frame with a Robust and Reliable Structure |
> Standing or Wall Mounting Installation at your Choice |
> Competitve Price with Satisfied Quality |
Addtional Discription:
Turning Angle of Front Door is over 180 Degrees; Opening Direction Can be Changed According to Your Practical Needs. |
Cable Entry on both of Top Cover and Bottom Cover |
120mm*120mm Fans are Avaliable on the Top Cover. |
Removable Side Panels Simplify your Installation of Accessories and Monitoring of IT Equipment. Lock is Optional |
Standard:
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI
Standard
Material:
High grade cold rolled steel.
Thickness:
Mounting profile: 1.500mm others: 1.2mm
Loading Capacity:
Static Loading: 60kgs
Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.
Degree of Protection:
IP20
Body Color:
RAL7035, RAL9004 etc.

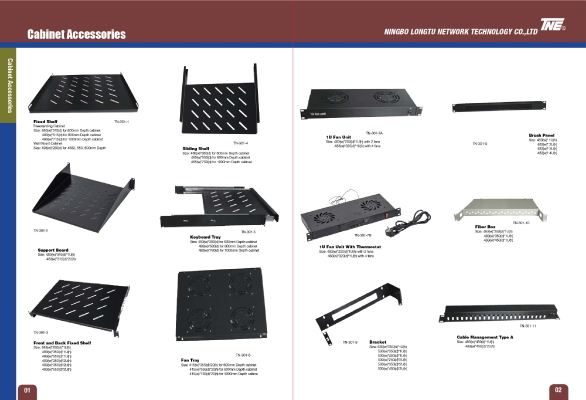

Optional Accessory:
| Fixed Shelf |
Sliding Shelf |
Cable Management |
Cooling Fan |
Power Distribution Unit/ PDU |
Mainly Size:
Model | Capacity U | Dimension | Packing Dimension | |
| W*D*H(mm) | W*D*H(mm) | Volume(CBM) | ||
TN-008-5606 | 6 | 540*600*310 | 550*610*320 | 0.107 |
TN-008-5609 | 9 | 540*600*445 | 550*610*560 | 0.188 |
TN-008-5612 | 12 | 540*600*580 | 550*610*590 | 0.198 |
TN-008-5615 | 15 | 540*600*710 | 550*610*720 | 0.242 |
TN-008-5620 | 20 | 540*600*933 | 550*610*945 | 0.317 |
TN-008-5625 | 25 | 540*600*1155 | 550*610*1170 | 0.393 |
- Place of Origin: China
- Brand Name: TNE
- Model Number: TN-008
