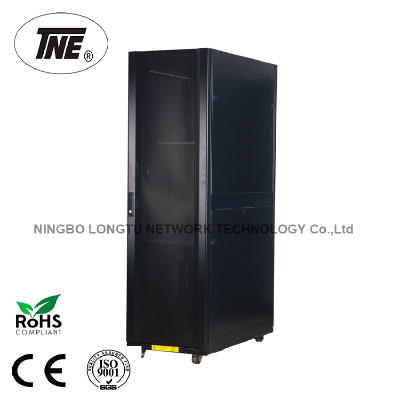

42U 19'' Network Cabinet with Front ARC vented door

Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41491;PART1, DIN41494;PART7,GB/T3047.2-92 and ETSI standard

Features:

*Network cabinet High-density ARC vented front single &rear dual doors, two section side panel.

*Network cabinet Standard enclosure for low to medium density server and networking applications.

*Compact width to optimize data center space.

*Network cabinet Feature-rich enclosures optimized for easy installation, managing cables, integrating
Power distribution, and maximizing airflow.

Standard:
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI
Standard

Material:
High grade cold rolled steel.

Thickness:
Mounting profile: 2.00mm others: 1.2--1.5mm

Loading Capacity:
Static Loading: 1000kgs

Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.

Degree of Protection:
IP20

Body Color:
RAL7035, RAL9004 etc.

Optional Accessory for Network cabinet:

Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
1U, 2U support board
Vertical Cable manager
19'' Power distribution unit(PDU)
19'' Blanking plate 1U, 2U, 4U
Heavy duty castor, Heavy duty castor with braker
Optional lock for side panels
Earth kit
And so on...
